Mini Gas Springs for Sliding Doors
GASTAC mini gas springs are specifically designed for space-constrained applications requiring smooth, controlled motion. Unlike standard gas springs, this mini-series starts with a force rating of just 10 N, making it ideal for applications such as lightweight flaps, panels, and guards, while avoiding the issues of excessive force and oversized dimensions associated with larger gas springs.
Not sure which series fits? Match it by installation space and required force — the full size and force range for each series is listed below. Send us your dimensions and we will confirm the right model before you order — Contact Us.
Mini Gas Springs Specifications
GASTAC offers three standard miniature gas spring series: the 3-8 series (3 mm rod / 8 mm tube), the 4-12 series (4 mm rod / 12 mm tube), and the 6-15 series (6 mm rod / 15 mm tube), covering strokes from 30 mm to 250 mm and force ranges from 10 N to 250 N. Custom stroke, force, and fittings are available on request. Not sure which series fits your application? Check the rod / tube size, stroke, and force range below.

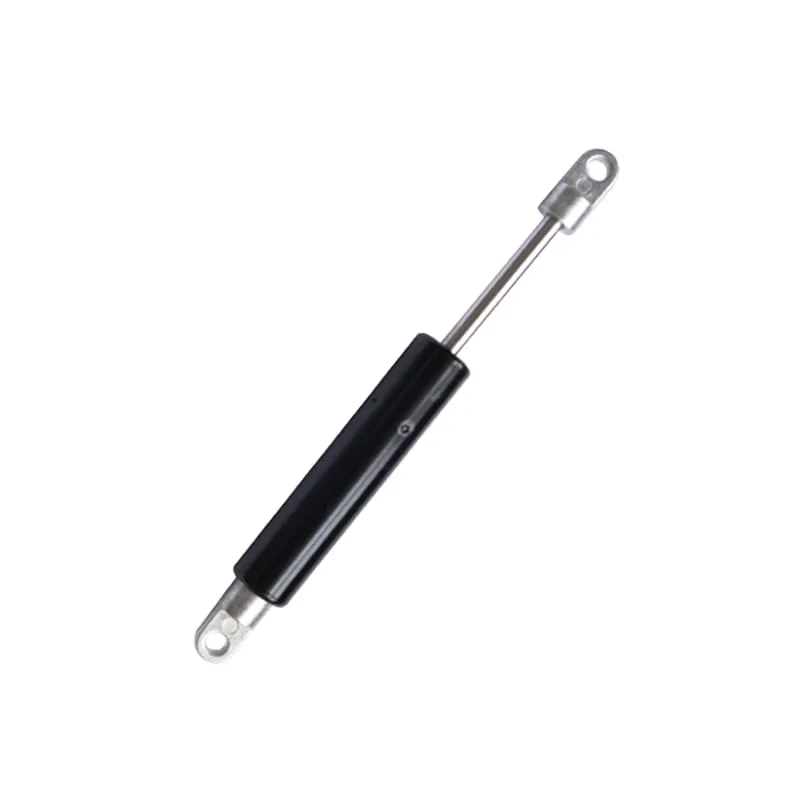

Miniature Gas Springs
- Rod Diameter:3 mm
- Body Diameter:8 mm
- Stroke:10–120 mm
- Extended Length:46–266 mm
- Force:10–100 N

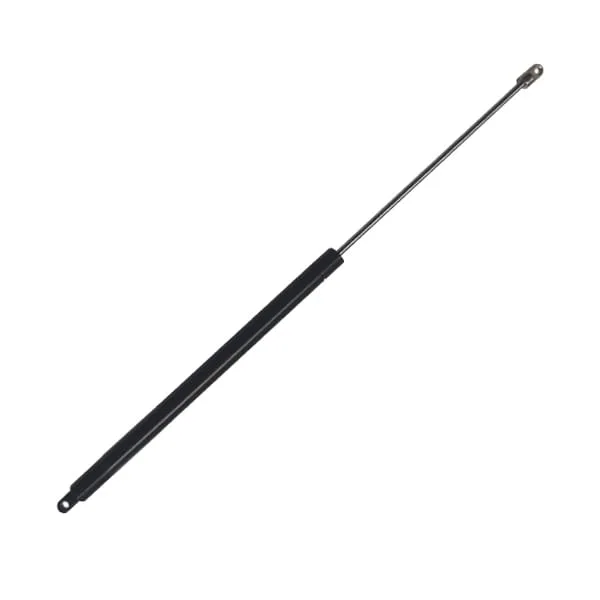

Micro Gas Springs
- Rod Diameter:4 mm
- Body Diameter:12 mm
- Stroke:10–150 mm
- Extended Length:50–330 mm
- Force:10–200 N

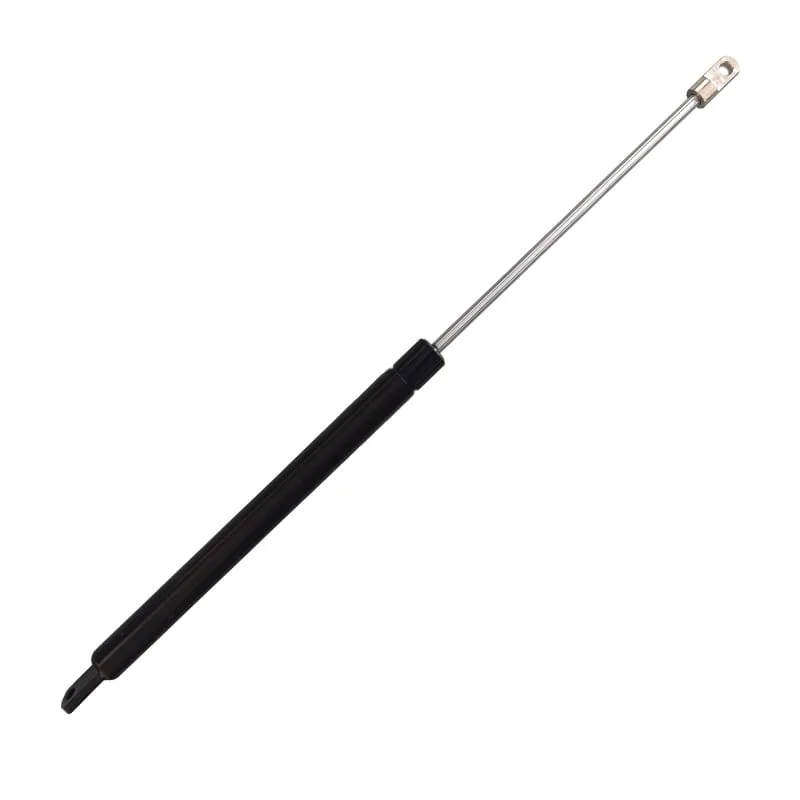

Mini Gas Springs
- Rod Diameter:6 mm
- Body Diameter:15 mm
- Stroke:10–250 mm
- Extended Length:50–530 mm
- Force:10–350 N
3-8 Miniature Gas Spring Specifications
| Item | Rod Diameter | Body Diameter | Stroke | Extended Length | Compressed Length | Force Range |
|---|---|---|---|---|---|---|
| MGT38-1 | 3 mm (0.12 in) | 8 mm (0.31 in) | 19.88 mm (0.78 in) | 65.76 mm (2.59 in.) | 45.88 mm (1.81 in) | 2.2-22 lbs (10-100 N) |
| MGT38-2 | 3 mm (0.12 in) | 8 mm (0.31 in) | 29.97 mm (1.18 in) | 85.94 mm (3.38 in.) | 55.97 mm (2.20 in) | 2.2-22 lbs (10-100 N) |
| MGT38-3 | 3 mm (0.12 in) | 8 mm (0.31 in) | 39.88 mm (1.57 in) | 105.76 mm (4.16 in.) | 65.88 mm (2.59 in) | 2.2-22 lbs (10-100 N) |
| MGT38-4 | 3 mm (0.12 in) | 8 mm (0.31 in) | 49.92 mm (1.97 in) | 125.84 mm (4.95 in.) | 75.92 mm (2.99 in) | 2.2-22 lbs (10-100 N) |
| MGT38-5 | 3 mm (0.12 in) | 8 mm (0.31 in) | 55.12 mm (2.17 in) | 136.24 mm (5.36 in.) | 81.12 mm (3.19 in) | 2.2-22 lbs (10-100 N) |
| MGT38-6 | 3 mm (0.12 in) | 8 mm (0.31 in) | 65.02 mm (2.56 in) | 156.04 mm (6.14 in.) | 91.02 mm (3.32 in) | 2.2-22 lbs (10-100 N) |
4-12 Micro Gas Spring Specifications
| Item | Rod Diameter | Body Diameter | Stroke | Extended Length | Compressed Length | Force Range |
|---|---|---|---|---|---|---|
| MGT412-1 | 4 mm (0.16 in) | 12 mm (0.47 in) | 29.97 mm (1.18 in) | 98.91 mm (3.89 in.) | 68.94 mm (2.71 in) | 2.5-25 lbs (11-111 N) |
| MGT412-2 | 4 mm (0.16 in) | 12 mm (0.47 in) | 39.88 mm (1.57 in) | 118.97 mm (4.68 in.) | 79.09 mm (3.11 in) | 2.5-25 lbs (11-111 N) |
| MGT412-3 | 4 mm (0.16 in) | 12 mm (0.47 in) | 55.12 mm (2.17 in) | 147.93 mm (5.82 in.) | 92.81 mm (3.65 in) | 2.5-25 lbs (11-111 N) |
| MGT412-4 | 4 mm (0.16 in) | 12 mm (0.47 in) | 65.02 mm (2.56 in) | 168 mm (6.61 in.) | 102.98 mm (4.05 in) | 2.5-25 lbs (11-111 N) |
| MGT412-5 | 4 mm (0.16 in) | 12 mm (0.47 in) | 80.01 mm (3.15 in) | 198.98 mm (7.83 in.) | 118.97 mm (4.68 in) | 2.5-25 lbs (11-111 N) |
| MGT412-6 | 4 mm (0.16 in) | 12 mm (0.47 in) | 89.92 mm (3.54 in) | 219.04 mm (8.62 in.) | 129.12 mm (5.08 in) | 2.5-25 lbs (11-111 N) |
6-15 Mini Gas Spring Specifications
| Item | Rod Diameter | Body Diameter | Stroke | Extended Length | Compressed Length | Force Range |
|---|---|---|---|---|---|---|
| MGT615-1 | 6 mm (0.24 in) | 15 mm (0.59 in) | 39.88 mm (1.57 in) | 109.76 mm (4.32 in.) | 69.88 mm (2.75 in) | 10-90 lbs (44-400 N) |
| MGT615-2 | 6 mm (0.24 in) | 15 mm (0.59 in) | 55.12 mm (2.17 in) | 140.24 mm (5.52 in.) | 85.12 mm (3.35 in) | 10-90 lbs (44-400 N) |
| MGT615-3 | 6 mm (0.24 in) | 15 mm (0.59 in) | 65.02 mm (2.56 in) | 160.04 mm (6.30 in.) | 95.02 mm (3.74 in) | 10-90 lbs (44-400 N) |
| MGT615-4 | 6 mm (0.24 in) | 15 mm (0.59 in) | 80.01 mm (3.15 in) | 190.02 mm (7.48 in.) | 110.01 mm (4.33 in) | 10-90 lbs (44-400 N) |
| MGT615-5 | 6 mm (0.24 in) | 15 mm (0.59 in) | 89.92 mm (3.54 in) | 209.84 mm (8.26 in.) | 119.92 mm (4.72 in) | 10-90 lbs (44-400 N) |
| MGT615-6 | 6 mm (0.24 in) | 15 mm (0.59 in) | 120.02 mm (4.72 in) | 270.04 mm (10.63 in.) | 150.02 mm (5.91 in) | 10-90 lbs (44-400 N) |
Advantages of GASTAC Mini Gas Springs
No Leaks, No Deformation
Made with high-quality seamless steel cylinders, so performance stays stable and lasts for years.
Find the Force You Need
Three series — 3-8, 4-12, 6-15 — with a full range of sizes, starting from as low as 10 N.
Set It and Forget It
Integrated grease chamber means no lubrication or maintenance needed, and it runs smooth and quiet.
Built to Last
Cycle tested to 30,000 strokes (4-12 series, 29.97 mm stroke) — reliable for the long run.
Won't Rust Outdoors
Salt spray tested for 96 hours (4-12 series, 29.97 mm stroke) — holds up in humid and outdoor conditions.
Fits Your Design
Threaded or one-piece end fittings make installation easy and match a wide range of designs.
Smooth, Every Time
Plain bearing guide delivers low friction and high wear resistance, so movement stays smooth.
Works Almost Anywhere
Used in medical equipment, furniture, lamps and fitness equipment.
Need Controlled Motion?
Every series is also available in a damper version for smooth, cushioned movement.

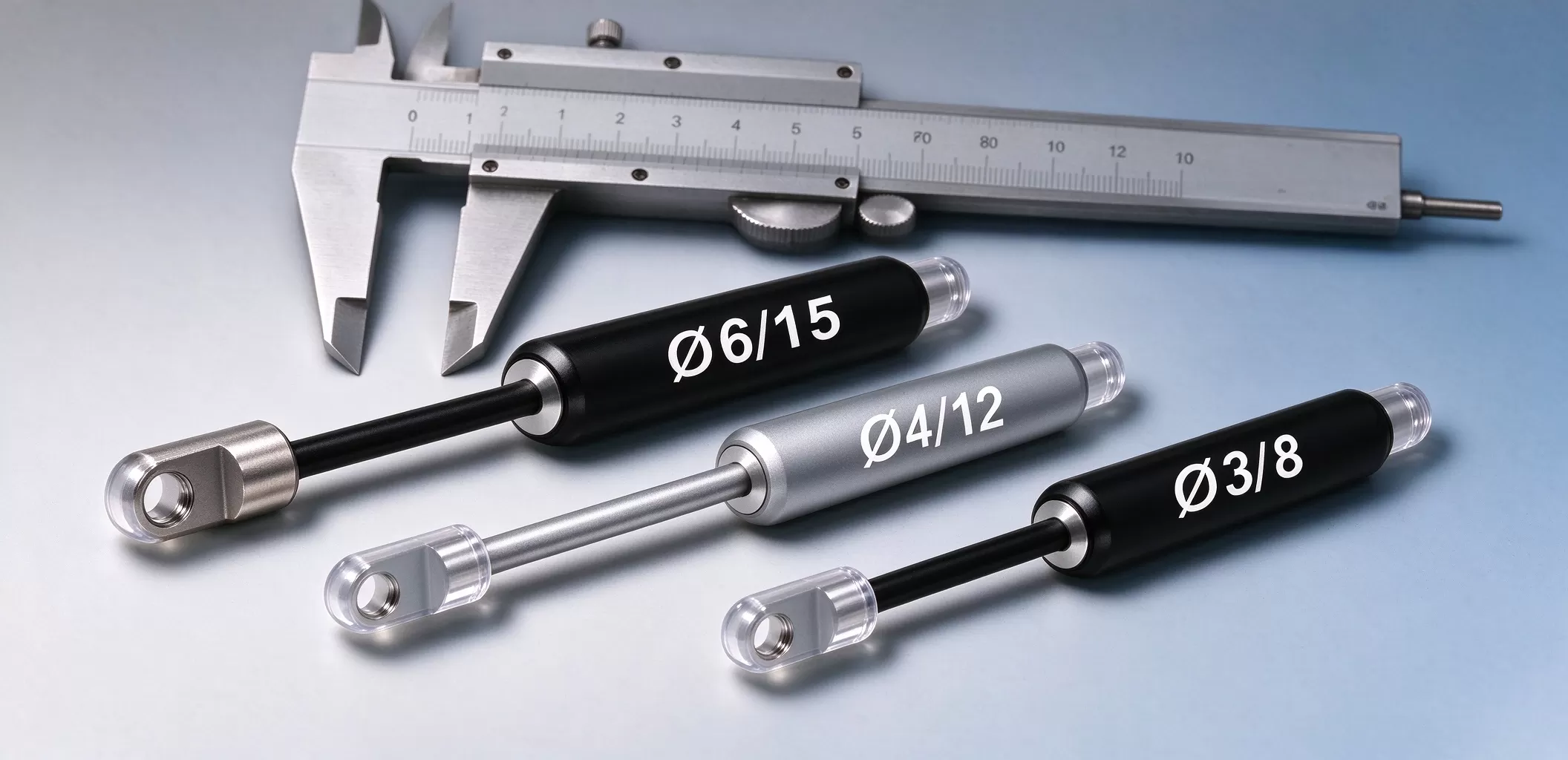

Custom Miniature Gas Springs
GASTAC manufactures custom mini gas springs in three series — 3-8, 4-12 and 6-15 — built to your exact stroke, length, force and fitting requirements.
Choose from carbon steel or stainless steel, with options for surface finish, extension speed, end damping and branding. Send us your drawing and we will build to match.
The table below lists every specification you can customize.
| Specification | Options | Specification | Options |
|---|---|---|---|
| Material | Carbon steel, stainless steel | Stroke | 3-8: 10–120 mm · 4-12: 10–150 mm · 6-15: 10–250 mm |
| Force Curve | Constant force or increasing force | Extended Length | 2 × Stroke + 26 mm (3-8) / + 30 mm (4-12, 6-15) |
| Rod / Body Diameter | 3/8 mm, 4/12 mm, 6/15 mm | Force | 3-8: 10–100 N · 4-12: 10–150 N · 6-15: 10–250 N |
| Extension Speed | Slow, normal, fast | End Fitting | Standard gas strut eyelet (M4, M6); custom types available |
| End Damping | None, standard, reinforced | Color | Black / grey / white, RAL color on request |
| Marking | Label, brand logo, color box, etc. | Surface Finish | Zinc plated, chrome plated, nickel plated, etc. |

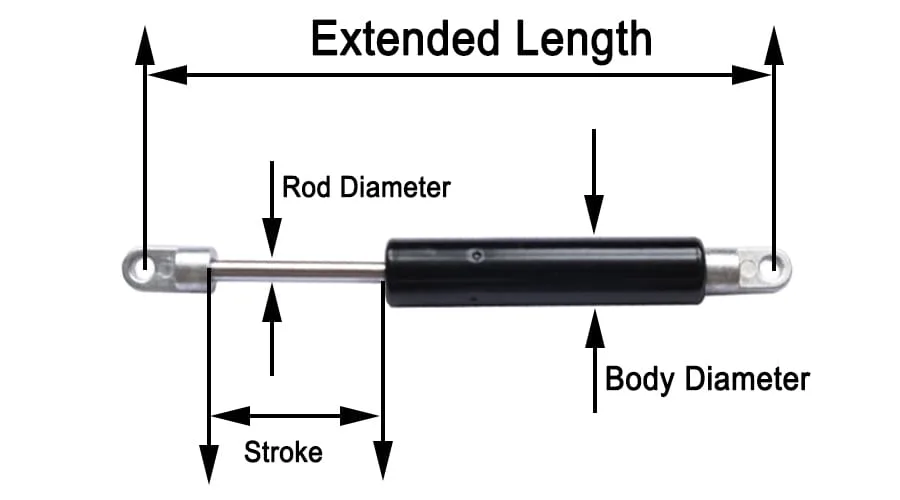

How to Measure a Small Gas Strut
To get the right replacement, you need to measure and check five key dimensions — extending the strut fully and compressing it fully gives you the numbers that matter. Here's what to check:
- Extended Length — Measure the distance from center to center of both mounting points when the strut is fully extended.
- Compressed Length — Measure the same center-to-center distance when the strut is fully compressed.
- Stroke — Calculate it by subtracting the compressed length from the extended length.
- End Fittings — Identify the fitting type and measure the ball diameter or eyelet hole diameter.
- Force — Read the N value printed on the cylinder, or test it with a force gauge.
GASTAC Factory Advantages
With over 20 years of gas spring manufacturing and export experience, GASTAC has become a trusted partner for engineers, OEM buyers, and distributors in more than 50 countries. Our factory combines automated production lines, in-house testing laboratories, and a dedicated engineering team to deliver consistent quality, fast lead times, and full customization — from a single sample to mass production.
ISO 9001 Certified Quality
Manufactured under ISO 9001 quality system and compliant with RoHS and REACH. Every batch is tested for force accuracy, stroke, and seal integrity before shipment.
Full Customization
Custom force (10–250 N), stroke, extended length, thread type, end fittings, and materials including SS304 and SS316L. Send us your drawing and we will quote within 24 hours.
Fast & Reliable Delivery
Stock models ship in 3–5 working days. Mass production lead time is 15–25 working days. Worldwide shipping by express, air, or sea with full export documentation.
Engineering Support
Free selection assistance, 2D PDF drawings and 3D STEP models for all standard models. Our engineers help you choose the right force, stroke, and fittings for your application.
Reliability Tested
Every model is cycle tested to 50,000+ strokes and salt spray tested from 96 to 1000+ hours. Test reports are available upon request.
100% Inspection Before Shipment
Each gas spring is individually checked for force, stroke, and seal integrity before packing. No batch sampling — every unit is verified.
