Traction Gas Spring

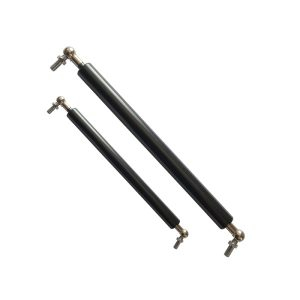

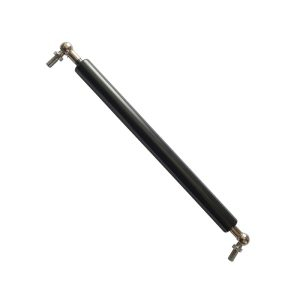

Traction gas spring, as the name suggests, also called tension Gas Springs.In general, gas springs are mechanical devices that use compressed gas to provide controlled and smooth motion. Traction gas springs, therefore, may operate by generating tension or pulling force. These gas springs could be utilized in scenarios where a pulling motion is required, it is often used in various applications such as automotive, aerospace, and furniture industries to provide controlled motion and support.

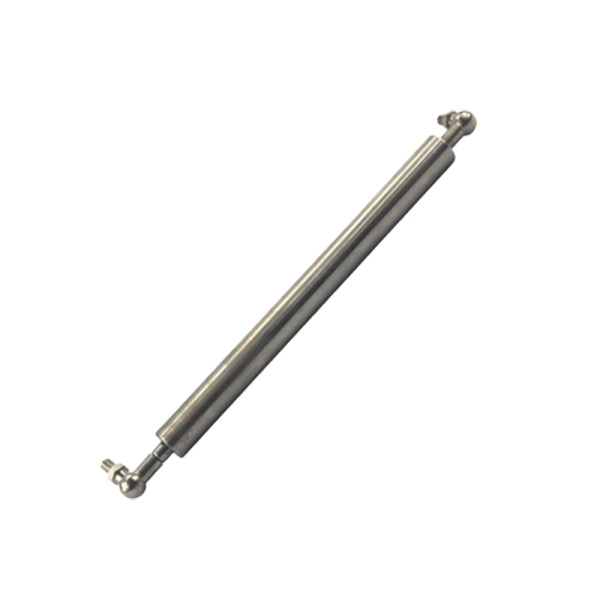

The traction gas strut consists of a cylinder that contains pressurized gas and a piston that moves within the cylinder. The piston is attached to a rod that extends from the cylinder, and the force is generated as the piston moves along the rod.

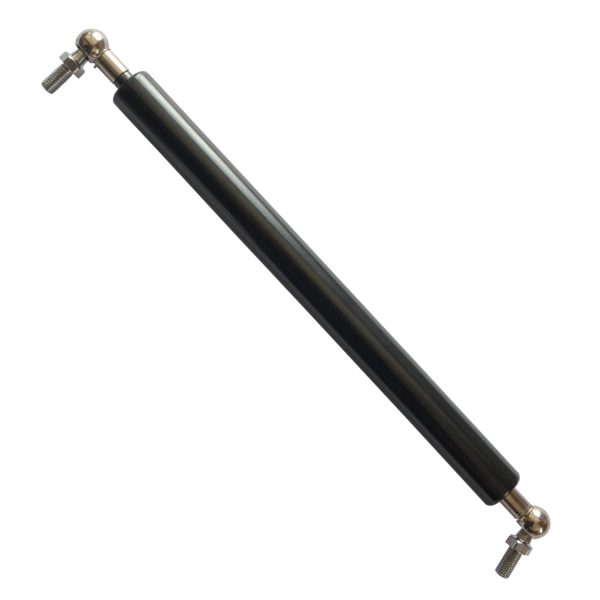

Traction gas strut is commonly used to provide support and controlled movement in hinged structures, such as the hood of a car, the lid of a trunk, or the door of a cabinet. They can also be used to counterbalance weight and provide lifting force, such as in adjustable height desks and hospital beds.

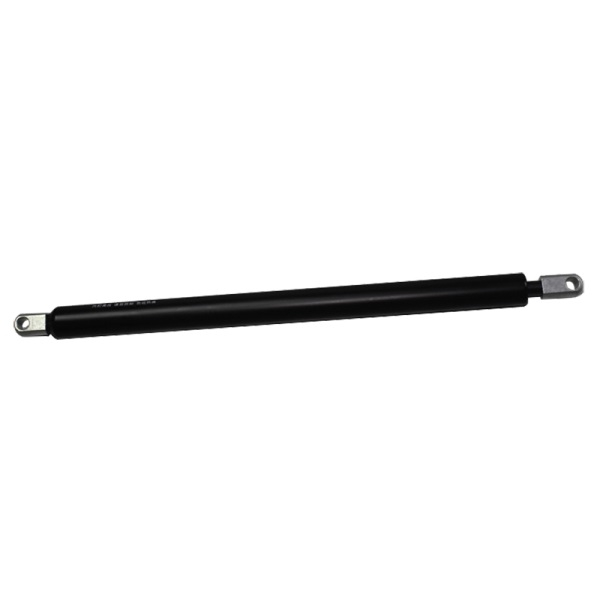

Traction gas strut australia is designed to withstand a specific amount of force and are available in various sizes and pressure ratings to accommodate different applications. Traction gas spring require careful selection and installation to ensure safe and reliable operation.
Traction Gas Spring Installation Dimensions
Some Specification Traction Gas Spring
Items | Size | Rod Ø | Body Ø | Stroke | Extended Length | Extension force |
GTC40X100 | 06/15 | 6 | 15 | 40 | 135 | 100 |
GTC40X150 | 06/15 | 6 | 15 | 40 | 135 | 150 |
GTC40X200 | 06/15 | 6 | 15 | 40 | 135 | 200 |
GTC40X250 | 06/15 | 6 | 15 | 40 | 135 | 250 |
GTC40X300 | 06/15 | 6 | 15 | 40 | 135 | 300 |
GTC40X350 | 06/15 | 6 | 15 | 40 | 135 | 350 |
GTC40X400 | 06/15 | 6 | 15 | 40 | 135 | 400 |
GTC50X100 | 06/15 | 6 | 15 | 50 | 155 | 100 |
GTC50X150 | 06/15 | 6 | 15 | 50 | 155 | 150 |
GTC50X200 | 06/15 | 6 | 15 | 50 | 155 | 200 |
GTC50X250 | 06/15 | 6 | 15 | 50 | 155 | 250 |
GTC50X300 | 06/15 | 6 | 15 | 50 | 155 | 300 |
GTC50X350 | 06/15 | 6 | 15 | 50 | 155 | 350 |
GTC50X400 | 06/15 | 6 | 15 | 50 | 155 | 400 |
GTC60X100 | 06/15 | 6 | 15 | 60 | 175 | 100 |
GTC60X150 | 06/15 | 6 | 15 | 60 | 175 | 150 |
GTC60X200 | 06/15 | 6 | 15 | 60 | 175 | 200 |
GTC60X250 | 06/15 | 6 | 15 | 60 | 175 | 250 |
GTC60X300 | 06/15 | 6 | 15 | 60 | 175 | 300 |
GTC60X350 | 06/15 | 6 | 15 | 60 | 175 | 350 |
GTC60X400 | 06/15 | 6 | 15 | 60 | 175 | 400 |
GTC80X100 | 06/15 | 6 | 15 | 80 | 215 | 100 |
GTC80X150 | 06/15 | 6 | 15 | 80 | 215 | 150 |
GTC80X200 | 06/15 | 6 | 15 | 80 | 215 | 200 |
GTC80X250 | 06/15 | 6 | 15 | 80 | 215 | 250 |
GTC80X300 | 06/15 | 6 | 15 | 80 | 215 | 300 |
GTC80X350 | 06/15 | 6 | 15 | 80 | 215 | 350 |
GTC80X400 | 06/15 | 6 | 15 | 80 | 215 | 400 |
GTC100X100 | 06/15 | 6 | 15 | 100 | 255 | 100 |
GTC100X150 | 06/15 | 6 | 15 | 100 | 255 | 150 |
GTC100X200 | 06/15 | 6 | 15 | 100 | 255 | 200 |
GTC100X250 | 06/15 | 6 | 15 | 100 | 255 | 250 |
GTC100X300 | 06/15 | 6 | 15 | 100 | 255 | 300 |
GTC100X350 | 06/15 | 6 | 15 | 100 | 255 | 350 |
GTC100X400 | 06/15 | 6 | 15 | 100 | 255 | 400 |
GTC120X100 | 06/15 | 6 | 15 | 120 | 295 | 100 |
GTC120X150 | 06/15 | 6 | 15 | 120 | 295 | 150 |
GTC120X200 | 06/15 | 6 | 15 | 120 | 295 | 200 |
GTC120X250 | 06/15 | 6 | 15 | 120 | 295 | 250 |
GTC120X300 | 06/15 | 6 | 15 | 120 | 295 | 300 |
GTC120X350 | 06/15 | 6 | 15 | 120 | 295 | 350 |
GTC120X400 | 06/15 | 6 | 15 | 120 | 295 | 400 |
GTC150X100 | 06/15 | 6 | 15 | 150 | 355 | 100 |
GTC150X150 | 06/15 | 6 | 15 | 150 | 355 | 150 |
GTC150X200 | 06/15 | 6 | 15 | 150 | 355 | 200 |
GTC150X250 | 06/15 | 6 | 15 | 150 | 355 | 250 |
GTC150X300 | 06/15 | 6 | 15 | 150 | 355 | 300 |
GTC150X350 | 06/15 | 6 | 15 | 150 | 355 | 350 |
GTC150X400 | 06/15 | 6 | 15 | 150 | 355 | 400 |
Traction Gas Spring Application
Gas Spring Applications
Tool boxes, lids and access panel covers
Truck bed covers
Recreational and specialty vehicles Industrial and agricultural equipment
Pantograph doors
Printing presses
Automotive hood struts (hood struts/hood supports)
Tanning bed gas struts
Casino gaming machines
Copier covers
Utility, travel and cargo trailers
Trunk, door and hatch lift supports
Locking gas springs for all types of adjustable seats
Bus, truck and aircraft cargo door gas springs
