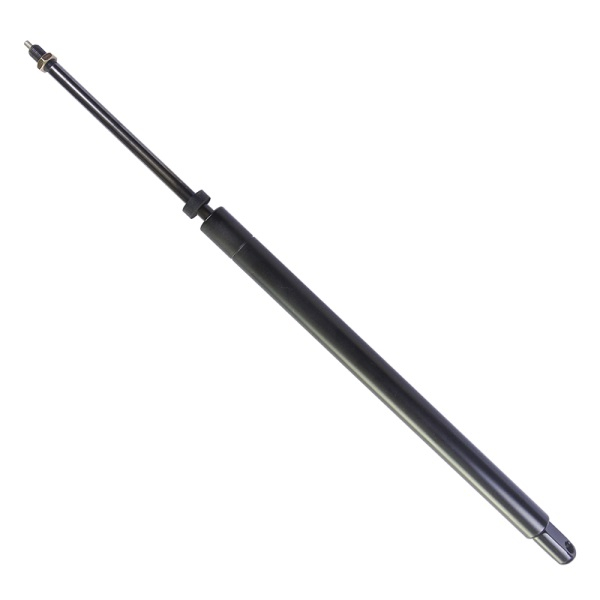

Rigid Locking Gas Spring

Rigid Locking Gas Spring

This type of spring, unlike the purely gas-filled, locking gas springs, in which the gas characteristics induce spring locking, fills the whole working range of piston with oil, allowing rigid locking and installation in any direction. Moreover, different locking forces in the direction of extension or compression could be gained due to the so-called separating piston which separates the gas chamber from the oil chamber.

Not only could this type of spring provide high oil locking force and variable locking and optimized weight compensation during lifting, lowering, opening, and closing, but also it enjoys the advantages of compact design for small spaces and easy mounting because of a variety of end fitting options. And bloc o lift locking gas spring can apply to head and foot panel adjustments in hospital beds, operating tables, wheelchairs, height adjustment in walker and armrest, headrest, driver seat adjustment, as well as desktop/table height and inclination adjustment.

Rigid Locking Gas Struts Installation Dimensions

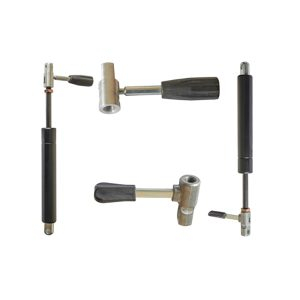

Rigid Locking Gas Spring Application

Rigid Extension Locking Gas Spring

Rigid Compression Locking Gas Spring
