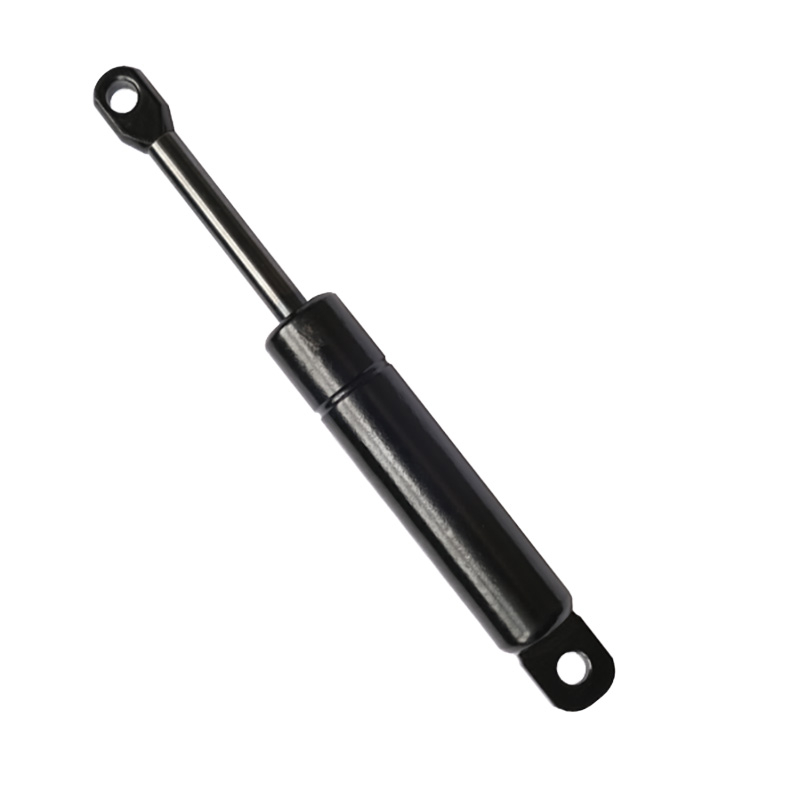

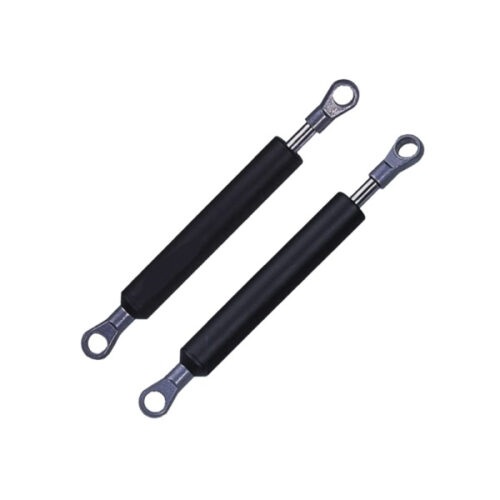

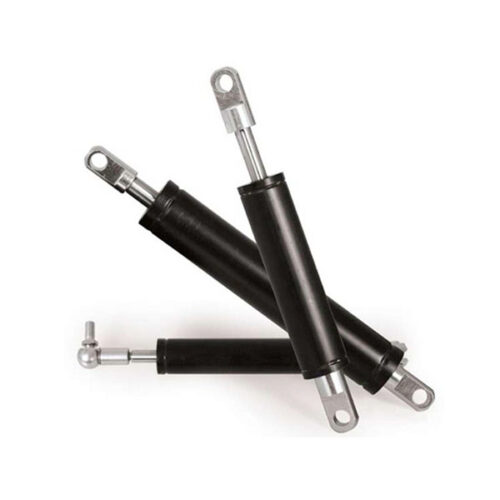

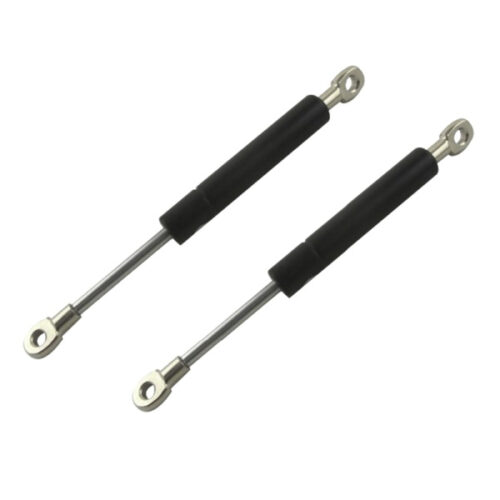

Miniature Gas Spring



Small devices need reliable support. Miniature gas spring deliver precise force. Therefore, they are perfect for compact applications. Indeed, enhance your product’s performance.



Miniature Gas Spring Advantages

• Compact design for tight spaces.
• Precise control of motion.
• Durable materials for long life.
• Customizable force and stroke.
• Smooth and consistent operation.



Versatile Miniature Gas Spring Applications

Firstly, medical equipment benefits greatly. Next, electronics require controlled movement. Additionally, robotics gains smooth articulation. Miniature gas springs are used widely. Thus, optimize your product design.



Miniature Gas Strut Technical Specifications

• Force range: 10N to 155N.
• Stroke: 10mm to 100mm.
• Body diameters: 12mm.
• Rod diameters: 4mm
• Thread sizes: M4.
• Material: High-grade steel.



Miniature Gas Springs Measurement Size Diagram

Selection is crucial. Firstly, size must match your needs. Then, force requirements get determined. Consequently, material choice matters. Moreover, consider mounting options. Finally, the best fit will be found.



Standard Specification Table

Product	Rod Ø	Body Ø	Force Range (lbs)	Stroke	Extended Length	Rod/Body Thread Size
43G010100TP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	29.97 mm (1.18 in)	98.91 mm (3.89 in.)	M4x0.7
43G010110TP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	39.88 mm (1.57 in)	118.97 mm (4.68 in.)	M4x0.7
43G010120TP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	55.12 mm (2.17 in)	147.93 mm (5.82 in.)	M4x0.7
43G010130TP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	65.02 mm (2.56 in)	168 mm (6.61 in.)	M4x0.7
43G010140TP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	80.01 mm (3.15 in)	198.98 mm (7.83 in.)	M4x0.7
43G010150TP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	89.92 mm (3.54 in)	219.04 mm (8.62 in.)	M4x0.7
43G010100MP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	29.97 mm (1.18 in)	110.74 mm (4.36 in.)	M4x0.7
43G010100CP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	29.97 mm (1.18 in)	114.81 mm (4.52 in.)	M4x0.7
43G010110MP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	39.88 mm (1.57 in)	130.81 mm (5.15 in.)	M4x0.7
43G010110CP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	39.88 mm (1.57 in)	134.87 mm (5.31 in.)	M4x0.7
43G010120MP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	55.12 mm (2.17 in)	159.77 mm (6.29 in.)	M4x0.7
43G010120CP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	55.12 mm (2.17 in)	163.83 mm (6.45 in.)	M4x0.7
43G010130MP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	65.02 mm (2.56 in)	179.83 mm (7.08 in.)	M4x0.7
43G010130CP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	65.02 mm (2.56 in)	183.9 mm (7.24 in.)	M4x0.7
43G010140MP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	80.01 mm (3.15 in)	210.82 mm (8.3 in.)	M4x0.7
43G010140CP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	80.01 mm (3.15 in)	214.88 mm (8.46 in.)	M4x0.7
43G010150MP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	89.92 mm (3.54 in)	230.89 mm (9.09 in.)	M4x0.7
43G010150CP	4 mm (0.16 in)	12 mm (0.47 in)	2.5-35	89.92 mm (3.54 in)	234.95 mm (9.25 in.)	M4x0.7

Miniature Gas Spring Installation Tips

Proper installation ensures longevity. Initially, please follow the suggestions of miniature gas spring manufacturers. Afterwards, avoid excessive side loads. Also, secure mounting points are required. Subsequently, test the movement. Ultimately, optimal performance is achieved.



Maintenance and Longevity of Miniature Gas Springs

Miniature gas struts regular checks extend lifespan. For instance, inspect for damage. Further, clean moving parts. Subsequently, lubrication might be needed. Finally, replace worn-out units.



Why Choose Our Miniature Gas Springs?

Firstly, quality is assured. Then, precise engineering provides reliability. Moreover, custom options are offered. Subsequently, fast delivery is guaranteed. Finally, excellent customer support is provided.

Optimize your designs today. Contact us now. Get expert advice. Therefore, enhance your miniature gas springs.
