Master Lift Gas Strut
A Master Lift gas strut is a precision-engineered device using compressed gas for controlled lifting. This efficient component ensures smooth and reliable motion, commonly employed in various applications such as automotive hoods, furniture, or marine hatches, enhancing functionality and user experience.
Master Lift Gas Strut
A Master lift gas strut is a type of mechanical device used to support and lift loads. It consists of a sealed cylinder containing gas, usually nitrogen, and a piston rod that extends from the cylinder. When the piston rod is compressed, the gas strut lift support inside the cylinder is compressed, creating a force that lifts the load.
Gas lift struts are commonly used in a variety of applications, such as automotive hoods, trunks, and tailgates, as well as in furniture and medical equipment. Lift support gas struts are also used in aircraft and aerospace applications to control the movement of components and support heavy loads.
For those seeking customizable options, GASTAC gas spring manufacturers offer OEM and ODM services, allowing for tailored specifications in terms of length, force, and end fittings. This flexibility ensures compatibility with a wide range of applications, from industrial machinery to specialized furniture designs.
Some Specification Master Lift Gas Strut
| Item | Extended Length | Compressed Length | Rod Dimensions | Tube Dimensions | Force | End Fitting |
|---|---|---|---|---|---|---|
| Gastac AM10 Gas Spring | 10.00″ | 7″ | 6mm | 15mm | 20 to 80 Lbs. | 10mm ball socket |
| Gastac AM11 Gas Spring | 7.5″ | 2.25″ | 6mm | 15mm | 10 to 80 Lbs. | 10mm ball socket |
| Gastac AM13 Gas Spring | 15″ | 9.5″ | 6mm | 15mm | 10 to 80 Lbs. | 10mm ball socket |
| Gastac AM14 Gas Spring | 20″ | 12″ | 6mm | 15mm | 10 to 80 Lbs. | 10mm ball socket |
| Gastac AM15 Gas Spring | 12″ | 8.5″ | 6mm | 15mm | 10 to 80 Lbs. | 10mm ball socket |
| Gastac AM16 Gas Spring | 17.2″ | 10.2″ | 6mm | 15mm | 20 to 80 Lbs. | 10mm ball socket |
| Gastac AM18 Gas Spring | 18.5″ | 11″ | 6mm | 15mm | 20 to 80 Lbs. | 10mm ball socket |
| Gastac AM25 Gas Spring | 26.3″ | 15.67″ | 10mm | 22mm | 30 to 175 Lbs. | 10mm ball socket |
| Gastac AM26 Gas Spring | 26.9″ | 15.2″ | 10mm | 22mm | 30 to 175 Lbs. | 10mm ball socket |
| Gastac AM27 Gas Spring | 28.0″ | 16.49″ | 10mm | 22mm | 30 to 175 Lbs. | 10mm ball socket |
| Gastac AM28 Gas Spring | 30.9″ | 17.15″ | 10mm | 22mm | 30 to 180 Lbs. | 10mm ball socket |
| Gastac AM29 Gas Spring | 36.3″ | 21.3″ | 10mm | 22mm | 30 to 175 Lbs. | 10mm ball socket |
| Gastac AM30 Gas Spring | 10″ | 7″ | 8mm | 18mm | 20 to 150 Lbs. | 10mm ball socket |
| Gastac AM31 Gas Spring | 7.5″ | 5.25″ | 8mm | 18mm | 20 to 150 Lbs. | 10mm ball socket |
| Gastac AM32 Gas Spring | 10.4″ | 7.4″ | 8mm | 18mm | 30 to 150 Lbs. | 10mm ball socket |
| Gastac AM33 Gas Spring | 15″ | 9.5″ | 8mm | 18mm | 20 to 150 Lbs. | 10mm ball socket |
| Gastac AM34 Gas Spring | 20″ | 12″ | 8mm | 18mm | 20 to 150 Lbs. | 10mm ball socket |
| Gastac AM35 Gas Spring | 12″ | 8.4″ | 8mm | 18mm | 20 to 150 Lbs. | 10mm ball socket |
| Gastac AM36 Gas Spring | 17.2″ | 10.2″ | 8mm | 18mm | 30 to 150 Lbs. | 10mm ball socket |
| Gastac AM37 Gas Spring | 18.5″ | 11″ | 8mm | 18mm | 30 to 150 Lbs. | 10mm ball socket |
| Gastac AM38 Gas Spring | 26.3″ | 15.7″ | 10mm | 22mm | 40 to 180 Lbs. | 10mm ball socket |
| Gastac AM39 Gas Spring | 26.9″ | 15.2″ | 10mm | 22mm | 40 to 180 Lbs. | 10mm ball socket |
| Gastac GS2675NM Gas Spring | 27.5″ | 16″ | 10mm | 22mm | 40 to 180 Lbs. | 10mm ball socket |
| Gastac GS2685NG Gas Spring | 28.5″ | 16.5″ | 10mm | 22mm | 40 to 180 Lbs. | 10mm ball socket |
| Gastac GS6449IM Gas Spring | 64.49″ | 40″ | 12mm | 25mm | 50 to 200 Lbs. | 12mm ball socket |
| Gastac GS752819 Gas Spring | 75.28″ | 45.19″ | 12mm | 25mm | 50 to 200 Lbs. | 12mm ball socket |
| Gastac GS752940 Gas Spring | 75.29″ | 49.40″ | 12mm | 25mm | 50 to 200 Lbs. | 12mm ball socket |
Master Lift Gas Struts Highlights
-GASTAC 100N/22.5lb 15-inch Master Lift Struts: Ideal for toolboxes, RV doors, and cabinets, offering easy installation and durable steel construction.
-Customized Steel Gas Struts: Tailored for industrial and furniture applications, featuring smooth, noise-free operation and a lifespan of up to 30,000 cycles.

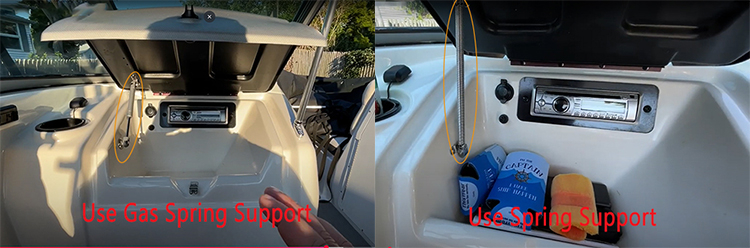

-Stainless Steel Chrome-Finished Struts: Designed for boats and marine, these struts offer a sleek appearance and robust performance.
GASTAC Master Lift gas struts are tested for longevity, with some models enduring up to 180,000 cycles, ensuring long-term reliability. Their robust construction and quality materials contribute to consistent performance across various environments.
Master Lift Gas Struts Key Features
Durability: Constructed with high-quality materials like stainless steel and chrome finishes for long-lasting use.
Smooth Operation: Designed to provide consistent force, ensuring controlled motion without abrupt movements.
Customization: Available in various sizes and force capacities to meet specific requirements.
Noise Reduction: Engineered for quiet performance, minimizing operational noise.
Easy Installation: Equipped with user-friendly mounting options for quick and straightforward setup.
Advantages of Master Lift Gas Strut
Master lift gas struts provide a number of advantages over other lifting mechanisms, such as hydraulics and springs. Master lift gas struts are lightweight, compact, and easy to install, and master lift gas struts provide consistent and reliable lifting force over a wide range of temperatures and operating conditions. Additionally, nitrolift gas struts can be customized to meet specific load and speed requirements, making them highly versatile and adaptable to a wide range of applications.
How do You Size A Gas Lift Strut?
To size a gas lift strut, measure the weightof the object it will lift and its pivot points. Calculate the required force, typically half the object’s weight. Determine the strut’s length by measuringthe distance from the pivot to the mounting point. Select a strut with appropriate force and dimensions.
How to Choose the Right Master Lift Gas Strut?
- 1. Measure Closed Length — Measure the fully closed door or lid
- 2. Measure Open Length — Measure the fully opened position
- 3. Determine Required Force — Select appropriate N-value based on weight and opening angle

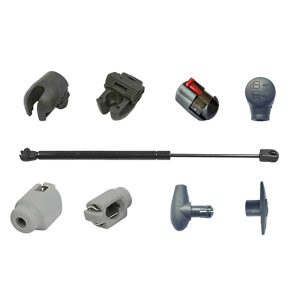

- 4. Choose End Fittings — Ball end, U-bracket, or custom fittings
- 5. Check Model Reference Table — Match old Master Lift model to GASTAC product
What is the Life Expectancy of A Gas Strut?
The life expectancy of a gas strut typically ranges from 40,000 to 100,000 cycles, depending on factors like quality, usage, environmental conditions, and maintenance. Frequent use, extreme temperatures, or exposure to contaminants can reduce lifespan. Regular inspections and proper installation can help maximize longevity.
Master Lift Gas Shocks Versatile Applications
Automotive: Supporting hoods, trunks, and tailgates for safe and effortless access.
Furniture: Assisting in the smooth operation of cabinets, beds, and other movable parts.
Industrial Equipment: Facilitating the lifting and positioning of heavy machinery components.
Recreational Vehicles: Enhancing the functionality of storage compartments and doors.
Master Lift Gas Shocks FAQs
Q1: What is a Master Lift Gas Strut?
A Master Lift Gas Strut is a high-performance gas support rod that uses pressurized nitrogen to provide stable lifting and support for doors, lids, hatches, and equipment components.
Q2: How do I choose the correct force for my application?
Determine the weight of the lid or door and the opening angle. Refer to the selection guide to select the appropriate force (N-value) for smooth operation.
Q3: Can I replace an old Master Lift model with a GASTAC strut?
Yes. Use the Master Lift model reference table to find the corresponding GASTAC replacement strut that matches length, force, and end fittings.
Q4: Do I need professional tools for installation?
No professional tools are required. Master Lift Gas Struts are designed for easy DIY installation and can usually be installed in less than 5 minutes.
Q5: How long do Master Lift Gas Struts last?
With proper installation and normal use, Master Lift Gas Struts are highly durable. Regularly check mounting points and replace the strut if wear or loss of force occurs.
Q6: Can Master Lift Gas Struts be repaired?
No, gas struts cannot be repaired. Once the strut loses pressure or fails, it should be replaced with a new one to ensure safe and smooth operation.
