Hyundai I10 Boot Strut

Is the tailgate of your Hyundai i10 feeling heavy, dropping unexpectedly, or failing to stay open in cold weather? These are definitive signs that your factory hydraulic rear hatch gas springs have lost their internal nitrogen pressure.

As a safety-critical component, a failing rear hatch lift support poses a direct risk of injury. GASTAC provides direct-fit, premium-engineered Hyundai i10 boot struts designed to restore smooth, hands-free OEM lifting performance and long-term reliability.



Understanding Your Hyundai i10 Boot Struts

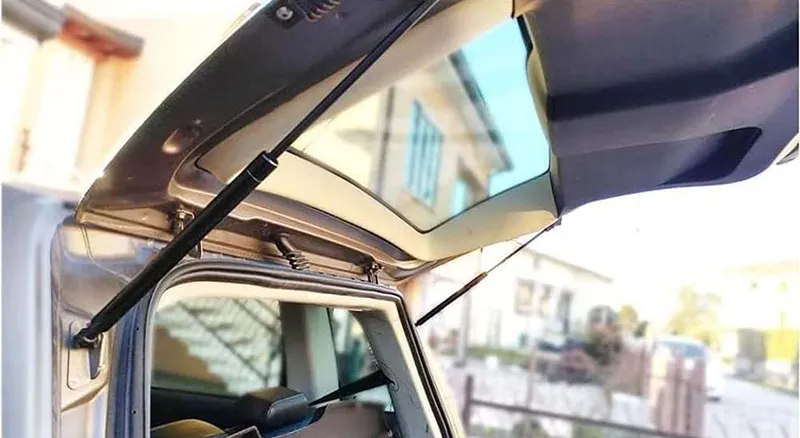

The Hyundai i10 is a popular, practical hatchback dependent on dual high-pressure gas struts to assist in lifting and counterbalancing the heavy metal tailgate. Inside each strut, highly pressurized nitrogen gas acts against a precision-ground piston rod to provide the necessary kinetic lifting force, while an internal oil chamber dampens the movement at the end of the stroke to prevent jarring.



Common Failure Symptoms of Boot Gas Struts

Recognizing the early warning signs of failing gas shocks prevents the sudden, dangerous collapse of your rear hatch:

• The Boot Tailgate Falls Down: The most obvious sign. The strut can no longer sustain the open position, causing the boot to slide or slam shut unexpectedly.
• Increased Manual Effort Required: If lifting the hatch feels unsafely heavy, the nitrogen gas charge has significantly depleted.
• Performance Drops in Cold Weather: Lower temperatures cause the internal nitrogen gas to contract (lowering pressure by roughly 3.5% for every 10°C drop). Worn seals allow this pressure drop to fail the lift entirely.
• Visible Hydraulic Oil Leaks: The internal oil lubricates the main rubber gasket. If you spot greasy black fluid leaking down the extended piston rod, the main seal has ruptured.
• Jerky or Noisy Operation: Scraping, clicking, or grinding sounds during the compression stroke indicate internal valve damage or dry piston rods.

Hyundai i10 Generation & Compatibility Chart

To guarantee a proper drop-in fitment, replacement parts must match the specific physical dimensions and force requirements (Newtons) of your vehicle’s production year. The Hyundai i10 spans three distinct generations, each featuring tailored engineering specifications:

OEM	Photo	Rod / Tube Ø	Stroke	Extended Length	Force	Year
817700X001		8 / 18 mm	165 mm	465 mm	360N	HYUNDAI i10 2007 – 2018

Interior Technology

• Highest corrosion resistance achieved through powder coated cyclinders and special treated piston rod surfaces.
• Minimal friction for the production of lowest extension forces.
• Great life cycles.
• Protection against vibration and light side forces.
• Integrated grease chamber.
• Low break away forces.
• Installation and storage in any position.

Step-by-Step DIY Installation Boot Strut Guide

Replacing a set of Hyundai i10 boot struts is a straightforward 10-minute project that requires minimal mechanical experience and no specialized tools.

Required Tools

• A flat-head screwdriver
• A secure prop rod (or a helper to hold the tailgate open safely)

Replacement Boot Struts Procedure

1. Support the Tailgate: Open the boot fully. Have an assistant support the weight or wedge a secure wooden pole to lock the hatch open. Never rely on the old boot struts during removal.
2. Release the Spring Clips: Locate the small metal retaining band clips on the ball-joint sockets at both ends of the old boot strut. Insert your flat-head screwdriver under the metal clip and pry it slightly outward until the mechanism unlocks.
3. Pop Off the Old Boot Strut: Pull the old cylinder socket outward to detach it from the vehicle’s ball stud. Repeat the process for the opposite end of the boot strut.
4. Install the New Boot Strut: Align the socket joints of the new GASTAC boot strut with the vehicle’s ball studs. Firmly press the socket onto the ball until you hear a sharp, metallic click, indicating the pre-installed spring clip has locked.
5. Test the Lift: Gently remove your manual prop rod. Cycle the rear hatchback up and down several times to confirm smooth dampening and safe hands-free support.

Premium OEM vs. Cheap Aftermarket Gas Springs

To understand why generic aftermarket lift supports fail prematurely, it helps to look at the engineering differences. Investing in precision-engineered gas springs directly eliminates repetitive replacement costs and cold-weather failures:

Why Partner with GASTAC Gas Springs?

For international automotive parts distributors, commercial wholesalers, and large-scale e-commerce brands, GASTAC is a premier industrial-grade manufacturing partner rather than a mere aftermarket trading company. We stand behind our B2B clients with robust corporate capabilities:

• IATF 16949 & ISO9001 Certified: Strictly managed automotive quality systems ensure absolute precision and trace-level tracking across high-volume batches.
• Automated Production & Scale: Advanced automated assembly lines and computerized force calibration guarantee stable output and bulk supply chain security.
• All-Weather Performance: Utilizing temperature-stable hydraulic oils and Viton seals, our gas springs function from -40°C to 80°C to eliminate winter warranty returns.
• OEM/ODM Engineering Support: Our in-house R&D team provides complete technical customization, bespoke Newton force calibrations, and private labeling.
• Rigorous Internal Testing: Every production batch undergoes continuous pressure retention and cycle-life testing to ensure long-term field reliability.
• Global Logistics Compliance: We provide streamlined international shipping compliance and localized packaging optimization for major global markets.
