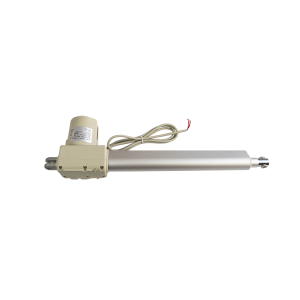

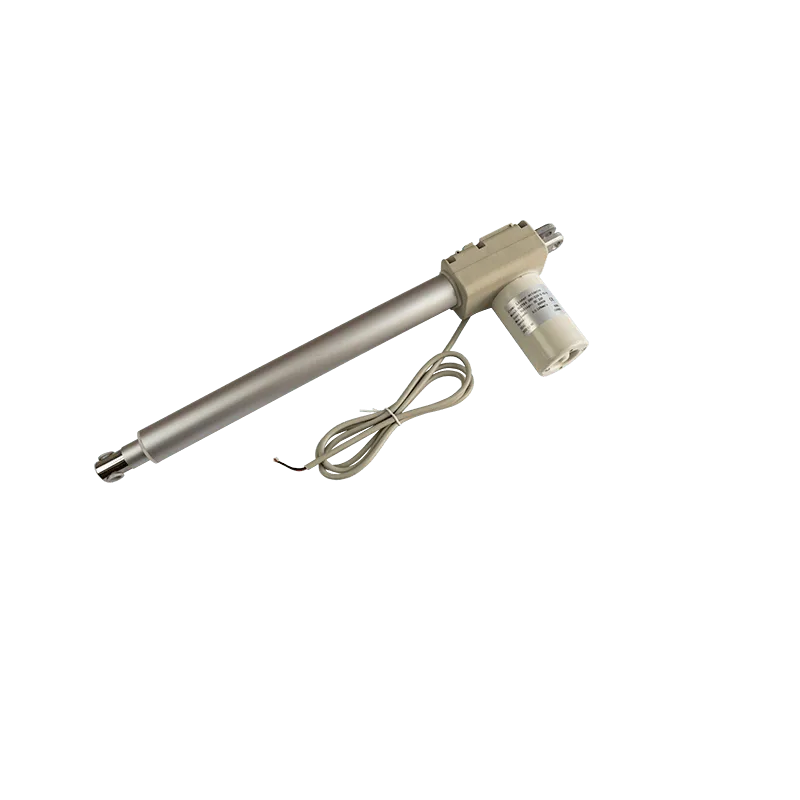

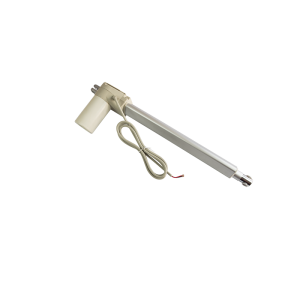

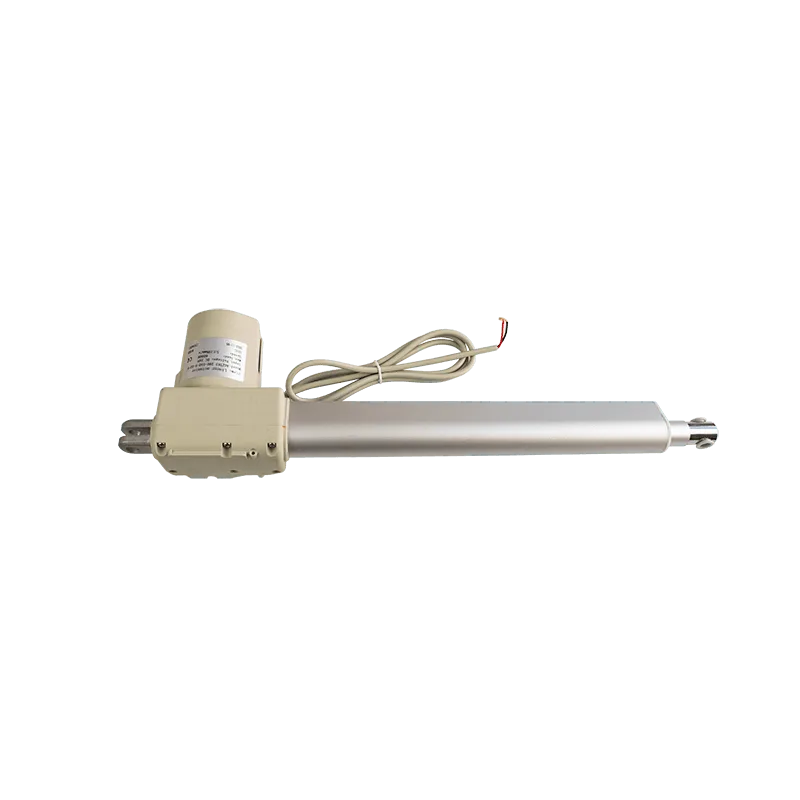

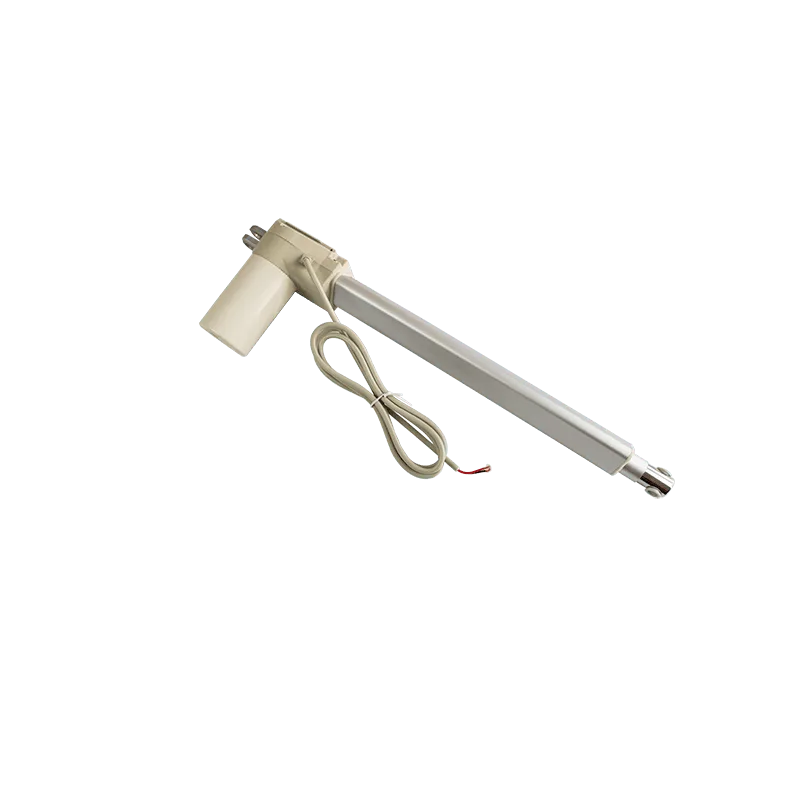

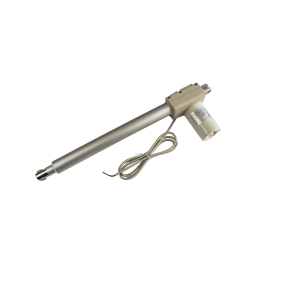

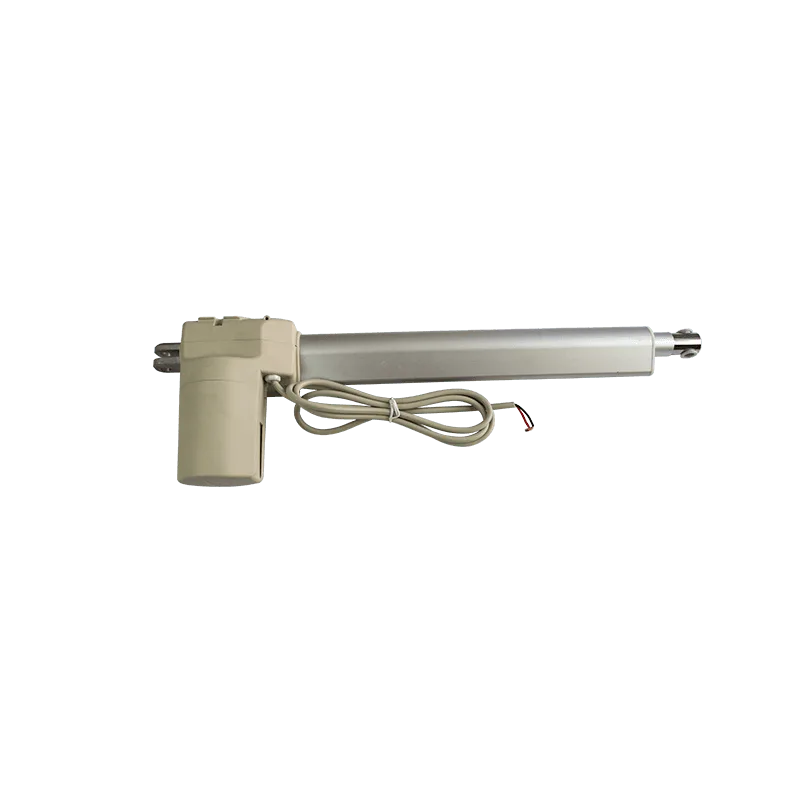

Electric Linear Actuator
Based on our popular electric linear actuator , we gave this model a boost in motor size to be able to offer more Force – Now up to 400 lbs. These units still retain all the same compact and versatile body shape while incorporating a larger upgraded DC Motor are the beginning of most home and product automation enterprises.
Industrial linear actuator is capable of 400 lbs dynamic force and 800 lbs static force. These units come equipped with built-in limit switches, are manufactured with plastic dust cover, and come in various stroke lengths.
General Features
Type∶GTZT61 Serise
Rated voltage(DCV)∶DC24V
IMAX(A)∶≤4A
No-load speed(mm/s)∶4~6,6~8,8~12,12~18,24~38
Thrust(N)∶6000N,4000N,3000N,2000N,1000N
No-load noise(db)∶≤50dB(A)@500mm (Ambient noise≤37dB(A))
Minimum installation distance L∶S+150 mm
Distance S∶10~350mm
Working system∶10%,Max.2min./18min.
level of protection∶IP43
Environment temperature∶+5℃~+40℃
