Do you need controlled downward motion? Then, pull gas struts are your answer. Indeed, these devices provide reliable retraction. Moreover, they are designed for precision. Therefore, explore their potential today.
GASTAC, a leading Chinese pull type gas struts manufacturer, offers advanced production technology and a skilled manufacturing team.If you need a small quantity of standard pull gas spring specifications, please visit the GASTAC online store and place an order easily. If you need large quantities or custom pull tension gas springs, please email sales@gastac.com.
The Functionality of Pull Gas Struts
Specifically, pull gas struts operate in reverse. That is, they retract instead of extend. Furthermore, this action is achieved through internal gas pressure. Consequently, the piston is pulled into the cylinder. Moreover, this controlled movement ensures safety.

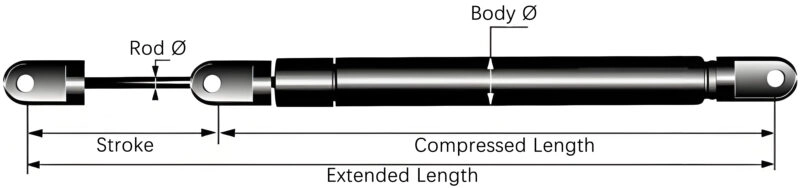

Measurement Diagram
- Extended Length: The total length when fully extended.
- Compressed Length: The total length when fully compressed.
- Stroke: The travel distance of the rod.
- End Fittings: Connectors for secure attachment.
- Rod Ø: Telescopic rod diameter.
- Body Ø: Outer shell steel pipe diameter.
Specification Parameter Table
GASTAC’s pull gas struts offer wide specification ranges. Forces span 50N to 4000N. Strokes vary from 100mm to 500mm. Cylinder and rod diameters are customizable. Below are some of GASTAC’s common sizes of pull gas struts to suit your application.
| Product | Rod Ø | Body Ø | Force Range | Stroke | Compressed Length | Extended Length |
| GST100200300 | 10mm | 28mm | 150-1500n | 100mm | 200mm | 300mm |
| GST150250400 | 10mm | 28mm | 150-1500n | 150mm | 250mm | 400mm |
| GST200300500 | 10mm | 28mm | 150-1500n | 200mm | 300mm | 500mm |
| GST250350600 | 10mm | 28mm | 150-1500n | 250mm | 350mm | 600mm |
| GST300400700 | 10mm | 28mm | 150-1500n | 300mm | 400mm | 700mm |
| GST400500900 | 10mm | 28mm | 150-1500n | 400mm | 500mm | 900mm |
| GST5006001100 | 10mm | 28mm | 150-1500n | 500mm | 600mm | 1100mm |
| GST5006161116 | 14mm | 40mm | 300-4000n | 500mm | 616mm | 1116mm |
| GST100190290 | 8mm | 22mm | 50-600n | 100mm | 190mm | 290mm |
| GST150240390 | 8mm | 22mm | 50-600n | 150mm | 240mm | 390mm |
| GST200290490 | 8mm | 22mm | 50-600n | 200mm | 290mm | 490mm |
| GST250340590 | 8mm | 22mm | 50-600n | 250mm | 340mm | 590mm |
Applications of Pull Gas Struts
Primarily, pull type gas struts are used in downward-opening lids. For instance, they secure access panels. Also, they manage heavy equipment covers. Additionally, they are used in machinery requiring controlled retraction. Moreover, they enhance safety and ease of use. In short, they simplify complex movements.
Advantages of Using Pull Gas Struts
Firstly, they provide consistent pulling force. Secondly, they offer smooth, dampened motion. Thirdly, they minimize noise and vibration. Fourthly, they increase operational safety. Finally, they require minimal maintenance. Therefore, they are an excellent investment.
Pull gas struts are essential for controlled downward movement. In conclusion, they are highly adaptable. Therefore, consider them for your specific needs. Ultimately, you’ll appreciate their performance.
