Gas Strut End Fittings – How to Unleash Potential

Gas strut end fittings are essential connectors designed to support loads while enabling motion control in various applications like steering and tensioning. Bracket gas spring, clevis joints, female rod end, gas strut ball ends and eye end fittings are all used in conjunction with gas springs.Simplify installation into various applications,to meet various application needs.

At GASTAC, we offering a diverse range of gas spring end fittings made from materials like plastic, steel, stainless steel and zinc, ensuring compatibility and durability. With options for standardized threading and various finishes, our gas spring ends enhance the performance of gas springs and dampers.

GASTAC offers a comprehensive selection of gas spring ends replacements and accessories, all designed for quick changeover.

GASTAC complements this with an extensive selection of replacement gas gas strut end fittings suitable, such as RVs, marine, and industrial uses, ensuring you find reliable solutions for your specific needs.

Types of Gas Strut End Fittings

Clevis Ends

Clevis ends are fasteners used to connect gas struts and applications to allow for angular movement. They consist of a U-shaped fork with a hole at the end, which is secured by a pin or bolt through the hole, creating a pivot point. Commonly made from steel or aluminum, clevis joints are ideal for applications requiring flexibility, such as in machinery, automotive systems, and suspension setups. Their design facilitates quick assembly and disassembly while maintaining strength and stability during operation.

Female Heim Joints

A female heim joint, also known as a rod end bearing, is a spherical bearing that allows for rotational movement between connected components. It features a threaded inner diameter, enabling easy attachment to gas spring and applications. The joint consists of a ball housed within a socket, providing flexibility and a wide range of motion, often used in suspension systems, steering assemblies, and robotics. Its durable construction typically includes materials like steel or aluminum, ensuring strength and reliability under load.

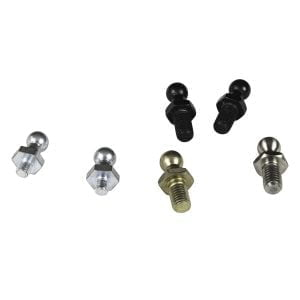

Stud Ball Joints

Gas strut ball joints are pivotal connection in gas strut systems, facilitating smooth movement and support. Typically composed of a spherical ball and a socket, it allows for multi-directional motion while maintaining structural integrity under load. The stud, which typically features threads, allows for easy installation onto various components, like control arms or steering links.The joint accommodates the compression and extension of the gas strut. Its design ensures durability, reducing wear and enhancing overall functionality in various mechanisms.

Locking Gas Strut Release Systems

Locking gas strut release joints are engineered for safety and ease of use, featuring a robust mechanism that securely holds a gas strut in place. When engaged, these joints provide a reliable lock, preventing unintended movement during operation. To release, a simple pull or push mechanism disengages the lock, allowing for smooth, controlled adjustment of the strut. Crafted from durable materials, they ensure longevity and resilience, making them ideal for applications like height adjustable desk and medical devices, where safety and functionality are paramount.

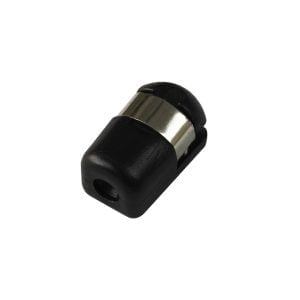

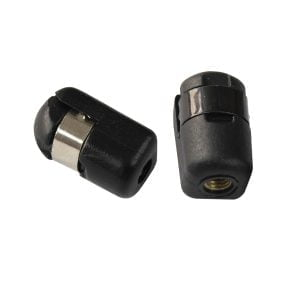

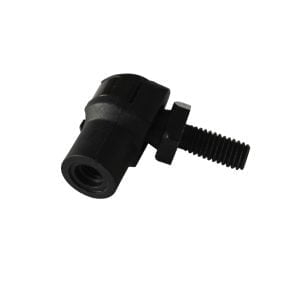

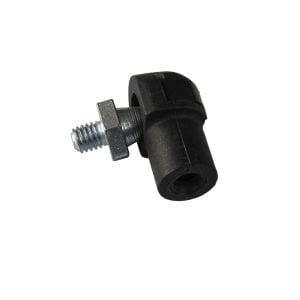

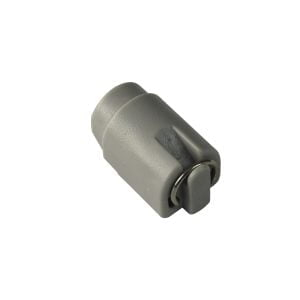

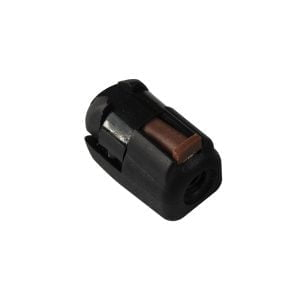

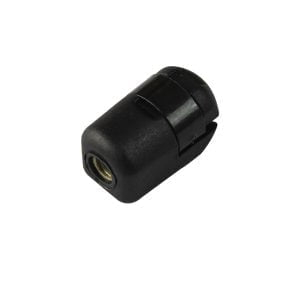

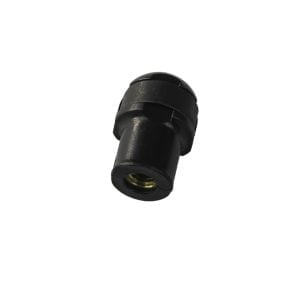

Plastic Ball Socket

The gas spring plastic ball socket is a robust, engineered component designed for seamless motion and support. Its smooth, curved interior cradles the ball with precision, allowing for fluid pivoting and reliable stability. Crafted from durable, lightweight plastic, it withstands environmental wear while maintaining flexibility. The socket’s sleek design ensures easy integration into various mechanisms, enhancing both functionality and aesthetic appeal in applications like automotive and furniture systems.

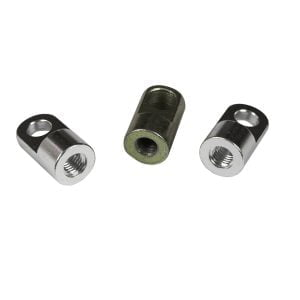

Eye End Fittings

Gas spring eye end fittings are crucial components designed for mounting gas springs securely. Typically made from robust materials like steel or aluminum, they feature a circular or oval eye shape, allowing for easy attachment. The surface is often coated for corrosion resistance. These fittings accommodate various pin sizes and orientations, ensuring flexibility in installation. Their sleek design not only serves functionality but also enhances the overall aesthetic of the mechanism they support.

Advantages of GASTAC Gas Strut End Fittings

Durability: Built to withstand heavy use, ensuring long-lasting performance.
Precision Engineering: Provides a secure fit, reducing wear and enhancing reliability.
Easy Installation: Quick and simple to install, saving time for users.
Versatility: Compatible with a variety of applications, from automotive to industrial.
Corrosion Resistance: Made from materials that resist harsh environments, ensuring longevity.
Smooth Operation: Designed for seamless movement, improving overall functionality.
Customizability: Available in various sizes and configurations to meet specific needs.

Selected Gas Strut End Fittings Products
